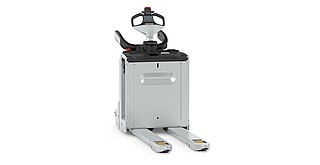

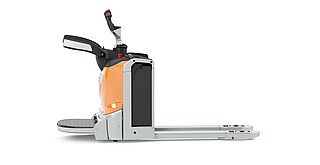

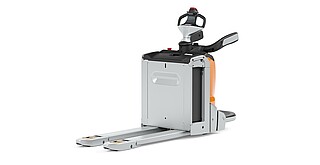

Low Lift Pallet Truck EXH-SF 16C-20C

Lightens the load

  • Yükleme kapasitesi 2000 kg
  • Nominal yükseklik 125 mm
  • Hız 8.5 km/h

Manoeuvrability and intuitive operation taken to a new dimension – the EXH-SF 16C/20C low lift pallet truck with folding stand-on platform is the smart assistant for light to medium duty horizontal transport operations. With its impressively slim dimensions, the pallet truck is very easy to manoeuvre when loading and unloading HGVs and can be operated with precision thanks to the electric steering and the innovative STILL tiller. The innovative STILL LED or touch display integrated in the tiller head provides even more working ergonomics and an excellent overview of all relevant truck data.

For maximum safety and increased handling performance at the same time, the EXH-SF 16C/20C features the STILL Curve Speed Control driver assistance system as standard, which automatically adjusts the speed when cornering. Sturdy side bars and a generously dimensioned sprung stand-on platform ensure safety and comfort during operation.The innovative STILL lithium-ion technology enables fast charging and interim charging of the battery during breaks, which ensures maximum availability of the smart warehouse assistant. In addition, different battery sizes are available to suit your individual requirements.

Bağlayıcı olmayan teklif
Bağlayıcı olmayan kiralama teklifi
İkinci El
İkinci el araç tekliflerimiz

Talepler için: EXH-SF 16C-20C

Lütfen aşağıdaki formu doldurun. Size en kısa süre içerisinde döneceğiz.

This site is protected by Friendly Captcha and the Friendly Captcha Privacy Policy applies.

Perfect ergonomics

Warehouse work has never been so easy, ergonomic and fatigue-free. Sitting comfortably on the mechanically sprung platform with the stable side bars, you can easily control the vehicle with one hand thanks to the electrical steering unit and innovative STILL tiller. The LED or touch display on the tiller head provides all relevant information at a glance while you enjoy a clear view of the front of the truck and the fork tips.

The smart hero for any warehouse

No aisle too narrow, no pathway too wide – the compact STILL EXH-SF 16C-20C is the perfect combination of manoeuvrability and handling performance, high battery power and quick loading options, and optimal ergonomic and safety standards, making it a hero, even when working over longer distances. It is guaranteed to be a warehouse favourite.

Made for your productivity

We excel at our job, so you can excel at yours: experience even more handling performance with our powerful (Li-Ion) batteries and lateral battery change, compact design for maximum manoeuvrability and extra-long forks (2,400 mm) if required. Smart safety features, such as the stable side guards and automatic STILL Curve Speed Control, ensure the perfect balance of productivity and safety.

EXH-SF 16C-20C detaylar

"Tek Kelimeyle Verimli" : Bir ekonomik verimlilik ölçüsü olarak performans özellikleri

Simply easy

Easy access and optimal protection for the operator’s back and joints:
low access point and adjustable, air-cushioned stand-on platform with integrated compressor (EXH-S and EXH-SF) available as an option

Optional built-in charger
for decentralised charging at any power socket

Optimal utilisation of storage space:
compact dimensions and high manoeuvrability facilitate narrow working aisles

A high level of comfort and excellent driving on any surface:
the stand-on platform is mechanically or pneumatically suspended, depending on the intended use

Simply powerful

Built for continuous operation:
reliable and low-maintenance drive

Swift, safe movement on ramps:
high-powered drive and lift motor and 5-wheel chassis with sprung support wheels

Instant charging:
lithium-ion model achieves 50 percent charge level in only 30 minutes and is fully charged in only 90 minutes

Designed to handle even the toughest applications:
robust, durable chassis made from solid steel

Simply safe

Simply work with precision
thanks to unobstructed field of vision: good view of the fork tips and centrally mounted tiller

Accidental roll-back impossible:
automatic stop function even on ramps

Fast and safe cornering:
Curve Speed Control automatically adapts speed to the steering angle when cornering

Safe load handling in confined spaces
thanks to compact dimensions

Simply flexible

Suitable driving programmes for any application,
from maximum handling power to optimal efficiency: ECO, BOOST or Blue-Q

Ready for use at all times:
battery capacities up to 500 Ah and optional STILL lithium-ion battery for round-the-clock availability

Decentralised and flexible chargingat any power socket
with the optional built-in charger

Flexibly configurable driver’s cab
for various main applications, from frequent ramp driving through to long transport distances: rear access, side access

Simply connected

Versatile, flexible access control
with FleetManager 4.x

Fast service analysis and parametrisation of settings
thanks to CAN bus interface

Easy integration into material flow management system
thanks to MMS provision

STILL Li-Ion Technology inside

İşletim maliyetlerini azaltmak ve araç kullanımını artırmak için mükemmel şekilde uyumlu hale getirilmiş güç sistemi.

STILL Li-İyon Teknolojisi Hakkında Daha Fazla Bilgi


Easy to operate

Easy to operate thanks to the ergonomic and intuitive STILL tiller arm.

Everything in view at all times

The smart LED or touch display clearly shows all relevant vehicle information.

Maximum manoeuvrability even in tight spaces

Made possible by the compact vehicle dimensions.

Safe and ergonomic position on the platform

thanks to the optional folding side bars.

Productive and safe right up to the last minute

STILL electric steering enables fatigue-free working throughout the entire shift.

Ergonomic suspension

The mechanically suspended stand-on platform provides ergonomic suspension and simultaneously increases the handling capacity.

Optional built-in charger

If you opt for the optional built-in charger, you can charge where and whenever you need to.

More productivity

For even more productivity in horizontal goods transport, the EXH-SF 16C/20C is optionally available with 2,400 mm forks.

Talepler için: EXH-SF 16C-20C

Lütfen aşağıdaki formu doldurun. Size en kısa süre içerisinde döneceğiz.

This site is protected by Friendly Captcha and the Friendly Captcha Privacy Policy applies.

Medya Merkezi

{{ filteredVideos.length }} Videolar

Modele Genel Bakış

Maksimum kapasite (kg)
Maksimum kaldırma yüksekliği (mm)
Seyahat hızı (km/sa)
Akü voltajı (V)
EXH-SF 16C / Li-Ion 1.600 125 8.5 24
EXH-SF 20C / Li-Ion 2.000 125 8.5 24


  • Veri Sayfası EXH-SF 16C-20C PDF, 3 MB İndir
  • Kullanım kılavuzu EXH-SF 16C-20C PDF, 6 MB İndir

İndirilmek üzere sunulan belge, standart araç kullanım talimatlarının güncel sürümüdür. Belge müşteri seçeneklerinin açıklamasını içermez (Müşteri Seçeneği). Beton kamyonu için, lütfen STILL yedek parça servisinden seri numarası ve üretim yılına göre ilgili kılavuzu talep edin.
